Validator NT's

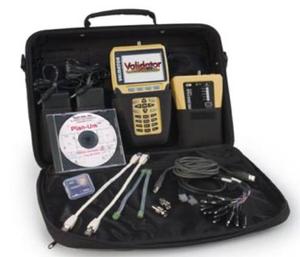

JDSU presents its affordable Certifier, the NT950 Validator. The Validator Certification tester is a full-featured Performance Certifier for all cables in the home and business. The included custom software allows a user to layout a floor plan, denotes where each cable drop will be installed, tests and certifies the system, documents the cable job, prints out reports, and archive jobs for future adds, moves or changes. The Validator measures and presents clear SPEED and PERFORMANCE with results up to 1 gigabit. Speed certification assures the cable will perform to it's rating. The Validator can Layout, Certify, Document and Archive. All in one unit! Network components such as switches, hubs, routers and systems will then operate at maximum efficiency. The software ties together all the different cable criteria found in complex voice/data/video installations and presents concise information in printed reports, while storing data for future use. Simply layout your requirements in a matter of minutes, then define cable types and runs. Test/certify each cable run. Print the results and attach them to your invoice.Completing and billing a cable installation job has never been easier.

Testing Capabilities: Practical Certification up to gigabit Ethernet links. Continuity testing on telephone line. report length. Continuity testing on coax lines, report length. Continuity testing of single pairs (security, speaker wires) Diagnose failing cables per 568A/B Wiremap with faults Distance to fault (open or short) TDR Length of each pair tested Tone generation capability. Documentation Reports: Home/Office layout and outlet plan generation for quote Test schedule of all outlets and cable runs Defines cable types within defined pairing Download testing plan and number of outlets/location for print Test to plan and save results in an archive file Print end of job report for billing Upload results and print a report Archive jobs for future reference Upload test results to PC for either print or remote storage. Certify: The Validator LAN Certifier Kit will certify network cable runs up to Gigabit speeds as per IEEE 802.3, TIA 568B and TIA/EIA-TSB-67 tests for physical problems in computer networks, cable, telephone, audio, and security/alarm wiring. It will find Opens and Shorts with TDR technology, and create reports to outline what the customer has asked for and the results of the installation. Network Layout: The Plan-Um software that is included with the Validator LAN Certifier allows an installer or integrator to sit with a client, create a layout or floor-plan of their home or offices, drop in icons showing network, telephone, cable, audio, or security outlets, run cables between ports and patch panels and create a full job listing that can then be printed out and given to the customer for approval and estimation. Document: The result is an End of Job Report that has complete customer information, the installer information, test results against the floor plan, and a place for an installers signature indicating the job is done. Archive: The documentation software not only allows the installer to do the job better, but it archives the job so that future adds, changes, and moves can be addressed easier and more efficiently. The NT950 LAN Certifier Kit includes the following: Validator Tester, Remote, Cables and Adapters, Plan-Um Software, 2 AC Adapter Power Chargers, Hard-Sided, Soft Zipper Case. Click here to see the Validator NT950 Video NT950 Your Price $1265.40

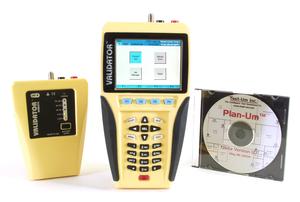

The new Validator-NT™ part# NT955 Ethernet System All-in-One Network Management Tool puts the power of network test and configuration in your hand at an affordable price. Validator-NT’s patented method of uploading and downloading information about cable tests and network configuration will help you gather the necessary information to manage your network easily, while documenting changes, upgrades or new configurations. Validator-NT measures and presents fast and clear SPEED and PERFORMANCE CERTIFICATION results up to 1 gigabit. Speed certification assures the cabling will do the job it is rated to do. Network components such as switches, hubs, routers and systems will then operate at maximum efficiency. Wire maps up to 8 locations with the network remote identifiers. The included powerful Plan-Um™ software ties together all the different cable criteria that are found in complex voice/data/video installations and presents concise information in printed reports, while storing data for future use. Simply layout your customer’s requirements in a matter of minutes, then define cable types and runs. Test/certify each cable run. Print the results and attach to your invoice. Completing and billing a cable installation job has never been easier. Supports IEEE 802.3 data speed carrying specifications to 1 gigabit. Measures cable length and distances to opens and shorts using advanced TDR technology. Tests telephone, coax, security/alarm, cables for continuity, proper termination and polarity. Tests shielded or unshielded Cat3, cat 5e, cat 5E, cat 6. Wiremaps individual runs to locate and identify cable routes. Tests interconnect specifications per TIA 568/570, including opens, shorts, miswires, split pairs, etc. Active network capabilities for test, link and identification Port Services Ping Testing Hub Flash Cable Quality Tests SKEW NEXT—All combinations on all pairs (12) Channel Response Echo Testing (Return Loss) impedance mismatches Signal to Noise Ratio Attenuation Amplitude Return Loss Bit Error Rate (BERT) Measures signal quality in actual link environments that could account for cable inadequacies, such as physical installation problems, kinks, loops, physical terminations, dry shorts, or miswires. Store data on either a laptop/PC or in flash card memory up to 2 GB. Use archived info when upgrading or changing previously installed systems. NT955 Package Contents Validator NT™ Main Unit and Smart Remote, 2 lithium ion rechargeable long-life batteries, 2 AC adapter/charger units, Test Connectors 8-position shielded modular jack (data), 6-position modular jack (telephone), F-coax (video), and dual banana jack (security, speaker, etc.) USB cable assembly, 64MB Compact flash card, Plan-Um™ design layout software, Cable Certification Labels (roll of 100), Set of 8 network remote identifiers, and 2 Sacrificial Cable modules (RJ 45) Deluxe carrying case with Accessories for the NT955 Click here to see the Validator NT955 Video NT955 Your Price $1622.25
