New Tri Porter

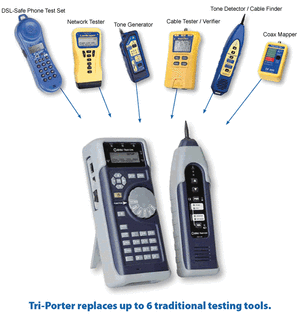

The Tri-Porter wiring tester is for multi-function testing If you work on coax, network and telco cable, you will want to have a testing solution that gives you capabilities to test wiring for voice, data and video. Tri-Porter will make your job of testing and configuring cables easier, faster and more accurate and at a cost that is a fraction of what you would expect to pay. The Tri-Porter™ performs the work of six independent testing tools: a telephone test set, a network tester, a tone generator, a cable tester/verifier, a tone detector and a coax mapper. ou can also perform port discovery-ISDN, POTS, Token Ring and Ethernet. Higher-level testing capability allows negotiation at 100 Mbit with DHCP or manual addressing and will ping IP addresses. Tri-Porter IVT600 Test Set User's Guide

Voice Telephony Testing Testing and verifying proper operation of each telephone outlet assures adequate signal levels for all offered services. Power-up telephone systems with the on-board dial tone simulator (SLIC) to test connected runs. Data Testing Ethernet Networks Test network cables on unpowered systems or check active working networks to detect any physical layer or configuration problems. Video RF Detection and Testing HDTV, video-on-demand, cable modems, etc., all demand superb signal quality to work correctly. Testing for physical and electronic variations will guarantee that everything works as it should. Package Contents: IVT600: Tri-PorterTM LB40B: Mini Headset - Headset/Microphone TP311: Set of 20 (1-20) Coax Remote Identifiers For Resi-Tester TP312: Set of 20 (1-20) RJ45 Wiremappers TP314: Set of 20 (1-20) RJ11 Wiremappers TT30: Round Tip Instruction Manual Your Price $799.00

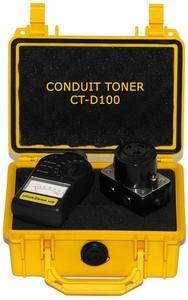

The Conduit Toner and Generator is the world's first metallic and non-metallic conduit/pipe tracer tool. A dual-tone acoustic sound is created which easily identify any point-to-point route of lost conduits and pipes inside building walls, floors or underground maintenance holes. With a range of 3 miles the Conduit Toner offers end-to-end identification through metallic or non-metallic pipes, PVC, EMT, IMC, RGC, etc. conduits. Its heavy-duty magnetic case can be attached in any position inside the metallic junction box, pull box or terminal cabinet walls Field technicians usually shake existing wire and cable runs, or use steel fish-tape inside the conduits to identify their end-points. This can cause potential damage to sensitive communication cables. The Conduit Toner is a smarter tool for identifying end-to-end conduit routes of existing cables up to 40% fill ratio without causing any wire damage. Another common technique is to shout or blow toward the conduit, stub-up or pipe opening while another technician is listening for the incoming sounds at the other end, the CT-D100 detector does the same thing replacing voice & ear. Click here to see the Conduit tracer Video Your Price $699.00
